制造公司 上海南亚覆铜箔板有限公司
公司网站 http://www.ccl-china.com
公司简介
  上海南亚覆铜箔板有限公司是一家国内专业从事覆铜箔板生产的民营企业,主要生产高档FR-4环氧树脂玻璃纤维布覆铜层压板,以及多层印制线路板所需的芯板和半固化片。产品用于航空航天、汽车、计算机、通讯设备、家电及各种高档电子产品,在国内外享有盛誉。
  Shanghai Nanya Copper Clad Laminate Co.,Ltd. is a Chinese enterprise specialized in the manufacture of Copper Clad Laminates. Shanghai Nanya mainly produces Expoxy Glass Fabric based FR-4, thin core laminates and Prepreg used for Multilayer printed circuits board. The products are widely used in the area of aero space, automotive, computer, communication,home electronics appliance and other high grade electronic products. Shanghai Nanya enjoys very good reputation all over the world.

  公司位于嘉定区南翔镇工业园区,总投资8000万美元,占地面积178亩,从2000年6月破土动工到产品下线仅用了短短7个月,在业界创造了著名的“南亚速度”。目前,公司已建有三个工厂。厂区内环境优美,绿树草坪、四季鲜花、水池亭阁相映成趣,一派欣欣向荣的现代花园工厂景象。公司600余名员工爱岗敬业,管理科学规范,生产井然有序。
  The company is located in the Nanxiang town industry area with investment of USD$80,000,000 and occupies the land of 120000 square meters. From factory ground breaking on June 2000 to products out of the line, Nanya only spent 7 months which created "Nanya speed" in the industry.At present,the company owns 3 plants.The factory and its environment are very beautiful as a garden factory with a number of big trees standing in the lawn where flowers are blooming. Besides these sceneries, there is also a clear lake with a resting pavilion. All of them show the sign of a modern advanced factory with promising future. Total 600 Workers in this factory love their jobs very much led by scientific management and advanced production team.

  公司一贯秉承“以人为本、集思广益、持之以恒、共创大业”的企业发展理念,贯彻“以质为本、不懈追求、满足客户、优化环境、节约资源、持续发展”的方针,科学管理,不断创新,坚持又好又快地发展。公司成立当年即盈利,2003年销售收入为1.5亿,盈利1500万元;2007销售收入达到7.1亿,上缴国家税收2200多万元,销售收入以年平均近110%的增长率递增。在迎战国际金融危机的2009年,公司又投入2.8个亿扩建了三期工厂。至此,公司年产能达到1300万平方米。
  The company always insist in the idea of "people-oriented,pool our ideas,perseverance and build future" with policy of "quality priority, pursue continuously, satisfy customers, optimize environment, save energy, sustainable development and persist in the best and quickest moving and development". We realized profit in the first year of our production and in the year 2003 we made our sales revenue one hundred and fifty millions USD with net profit margin fifty millions USD.Then in the year 2007, the sales turnover reached united states dollars seven hundred and ten million that created the tax income about USD twenty-two million for the country. The sales income is nearly increasing 110% each year.During the financial crisis year of 2009,the company invested another united states dollars of two hundred and eighty millions to build up the third plant. Up to now, our capacity is 1300 square meters per year.

  创新是企业可持续发展的灵魂。南亚公司拥有一批高素质的技术开发、市场营销和现代化管理人才,公司以专业团队为荣,以持续技术更新、优质服务为奋斗目标,为顾客提供新型的高品质覆铜箔板。近年来,为适应国际市场发展的需要,在不断提升公司品牌的质量内涵,不断满足客户需求,推动FR-4覆铜箔板向绿色环保化发展的同时,相继研制开发了无卤环保型、无铅焊型、高TG型及HDI内层薄型系列化新产品,为公司的品牌升级和企业的可持续发展打下了坚实基础,为全球覆铜箔板行业的创新和电子信息产业的发展做出了贡献。
Innovation is the spirit of long-term development for the enterprise. Shanghai Nanya owns a group of high educated engineers, salesman and modern management people,the company is proud of it's professional group team and aim for continuous technology updating and excellent service in order to offer good service in the area of high quality copper clad laminates. In recent years, in order to meet the requests of global markets and to satisfy more requirements of different customers, we developed many environment-friendly new products like halogen-free, lead-free, high TG and HDI insided thin types CCL. This helped significantly in our overall competence and made contribution for the innovation of copper clad laminates industry and electronic information industry in the world.

● 产品目录 Product List(UL File No.: E213990)

产品类别Classification

产品名称
Product

特性简述
Feature

固化体系Curing

填充料Filler

Tg
(DSC,℃)

TD
(TGA,℃)

传统 FR-4
Conventional
FR-4

NY1140

符合 RoHS, 普通 Tg FR4
RoHS Compatible, Normal Tg FR4

DICY

No

140

310

NY1150

符合 RoHS, 中 Tg FR4
RoHS Compatible, Mid-Tg FR4

DICY

No

150

318

NY1170

符合 RoHS, 高 Tg FR4
RoHS Compatible, Hi-Tg FR4

DICY

Yes

170

320

NY1600

符合 RoHS, 普通 Tg FR4, CTI>600V
RoHS Compatible, Normal Tg FR4,CTI>600V

DICY

Yes

135

310

无铅制程因应产品
Lead Free Compatible FR-4

NY2140

高耐热性 , 低 CTE, 普通 Tg FR4
Excellent Thermal Resistance,
Low CTE, Normal Tg FR4

PN

Yes

140

325

NY2150

高耐热性 , 低 CTE, 中 Tg FR4
Excellent Thermal Resistance,
Low CTE, Mid-Tg FR4

PN

Yes

155

345

NY2170

高耐热性 , 低 CTE, 高 Tg FR4
Excellent Thermal Resistance,
Very Low CTE, Hi-Tg FR4

PN

Yes

175

350

无卤素 & 无铅
制程因应产品
Halogen free & Lead free Compatible FR-4

NY3140

高耐热性 , 低 CTE, 普通 Tg FR4, 无卤素
Excellent Thermal Resistance, Low CTE, Normal Tg FR4, Halogen free

DICY

Yes

140

370

NY3150

高耐热性 , 低 CTE, 中 Tg FR4, 无卤素
Excellent Thermal Resistance,
Low CTE, Mid-Tg FR4, Halogen free

PN

Yes

155

375

NY3170

高耐热性 , 低 CTE, 高 Tg FR4, 无卤素
Excellent Thermal Resistance,
Very Low CTE, Hi-Tg FR4, Halogen free

PN

Yes

175

375

高频 & 无铅制程因应产品
High Frequency & Lead free Compatible FR-4

NY6150

高耐热性 , 低 CTE, 中 Tg FR4, 低介电常数
Excellent Thermal Resistance,
Low CTE, Mid-Tg FR4, Low Dk & Low Df

--

Yes

155

330

NY6200

高耐热性 , 低 CTE, 高 Tg FR4, 低介电常数
Excellent Thermal Resistance,
Low CTE, Hi-Tg FR4, Low Dk & Low Df

--

Yes

180

345

高导热覆铜板
High thermal conductivity Copper Clad Laminate

NY8050 NY8110 NY8160 NY8220 NY8320

铝基覆铜板,导热系数 λ= 0.5W/m.K
铝基覆铜板,导热系数 λ= 1.1W/m.K
铝基覆铜板,导热系数 λ= 1.6W/m.K
铝基覆铜板,导热系数 λ= 2.2W/m.K
铝基覆铜板,导热系数 λ= 3.2W/m.K

--

Yes

--

--

复合基覆铜板
CEM-3

NY9140

传统的 CEM-3 材料
Conventional CEM-3

DICY

Yes

130

--

NY9600

高漏电起痕性 CEM-3 材料
High CTI (CTI>600V) CEM-3

DICY

Yes

130

--

● 采购信息 PURCHASING INFORMATIO

基板厚度
Thickness

厚度公差
Tolerance

铜箔
Copper foil

标准供应尺寸 Standard Size

0.03mm
to 3.2mm

IPC4101
Class C/M

1/4 oz
to 6 oz

915× 1220mm (36″×48″), 1020× 1220mm (40″×48″)
1070× 1220mm (42″×48″), 1830× 1220mm (72″×48″)
2040× 1220mm (80″×48″), 2140× 1220mm (84″×48″)

* 其它尺寸和厚度亦可供应Other sheet size and thickness could be available upon request.

半固化片
Prepreg

标准供应尺寸
Standard Size

常用玻纤布型号
Normal Glass Type

Normal
Anti-CAF
LDPP (for HDI)

49.5' ' × 300 m
49.5' ' × 150 m

Normal (106, 1080, 2113, 2313, 3313, 2116, 1652, 1506, 7628)
Anti-CAF (106, 1080, 2113, 2313, 3313, 2116, 1652, 1506, 7628)
Laser Drillable (106, 1037, 1067,1078, 1080, 1086)

* 其它裁片尺寸和卷长度亦可供应Other sheet size and roll length could be available upon request.
备注Remark:
  · 以上所有产品均符合RoHS指令及SONY SS-00259标准要求;
   All the products listed above are compatible with RoHS directive and SONY SS-00259 standard.
  · 以上所有产品都可生产可激光钻孔半固化片和耐阳离子迁移产品;
   All the products listed above are available for Laser Drillable Prepreg and Anti-CAF products.
  · 以上产品特性数据为测试典型值,仅供参考。
   All the data listed are typical values for your reference only.
-----------------------------------------------------------------------------------------------------------------
1. 产品编号:【NY1140】
Conventional FR-4, Normal Tg, DICY Curing, UV Block/AOI Compatible
  特点             FEATURES
  · Tg 140℃ FR-4板材      Tg 140℃ FR-4
  · 优秀的剥离强度        Excellent Peel Strength
  · UV Blocking 和 AOI兼容    UV Blocking/AOI Compatible
  · 较低的吸水率         Lower Water Absorption
  · 优秀的尺寸安定性       Excellent Dimension Stability
  应用领域           APPLICATIONS
  · 消费电子类          Consumer Electronics
  · 仪器仪表类          Instrumentations
  · 通讯设备类          Communications, and etc.
-----------------------------------------------------------------------------------------------------------------
2. 产品编号:【NY1150】
Conventional FR-4, Middle Tg, DICY Curing, UV Block/AOI Compatible
  特点             FEATURES
  · Tg ≥145℃ FR-4板材    Tg ≥145℃ FR-4
  · 优秀的剥离强度       Excellent Peel Strength
  · UV Blocking 和 AOI兼容   UV Blocking/AOI Compatible
  · 较低的吸水率        Lower Water Absorption
  · 优秀的尺寸安定性      Excellent Dimension Stability
  应用领域           APPLICATIONS
  · 消费电子类         Consumer Electronics
  · 仪器仪表类         Instrumentations
  · 通讯设备类         Communications, and etc.
-----------------------------------------------------------------------------------------------------------------
3. 产品编号:【NY1170】
Conventional FR-4, High Tg, DICY Curing, UV Block/AOI Compatible
  特点            FEATURES
  · Tg ≥165℃ FR-4板材    Tg ≥165℃ FR-4
  · 优秀的剥离强度      Excellent Peel Strength
  · UV Blocking 和 AOI兼容  UV Blocking/AOI Compatible
  · 较低的吸水率       Lower Water Absorption
  · 优秀的尺寸安定性     Excellent Dimension Stability
  应用领域          APPLICATIONS
  · 消费电子类        Consumer Electronics
  · 仪器仪表类        Instrumentations
  · 通讯设备类        Communications, and etc.
-----------------------------------------------------------------------------------------------------------------
4. 产品编号:【NY1600】
Conventional FR-4, CTI>600V (Grade 0), Normal Tg, UV Block/AOI Compatible
  特点            FEATURES
  · 优秀的耐漏电起痕性CTI>600V (IEC60112方法)
                Excellent Tracking Resistance CTI>600V (IEC60112Method)
  · Tg 135℃ FR-4板材     Tg 135℃ FR-4
  · 优秀的剥离强度      Excellent Peel Strength
  · UV Blocking 和 AOI兼容  UV Blocking/AOI Compatible
  · 较低的吸水率       Lower Water Absorption
  · 优秀的尺寸安定性     Excellent Dimension Stability
  应用领域          APPLICATIONS
  · 消费电子类        Consumer Electronics
  · 仪器仪表类        Instrumentations
  · 通讯设备类        Communications, and etc.

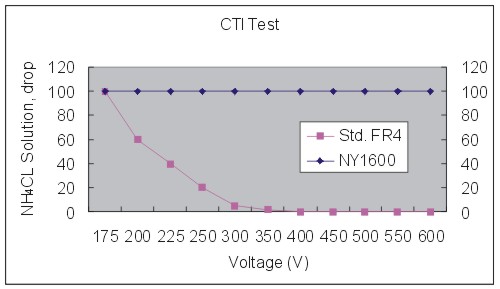

  · 优秀的耐漏电起痕性    Excellent Tracking Resistance CTI>600V

-----------------------------------------------------------------------------------------------------------------
5. 产品编号:【NY2140】
Normal Tg, PN Curing and Contains Fillers, Low Z-CTE, CAF Resistance
  特点            FEATURES
  · Tg ≥135℃无铅兼容FR-4板材 Tg ≥135℃ Lead-free compatible
  · 优秀的剥离强度       Excellent Peel Strength
  · 低Z-CTE值         Low Z-axis CTE

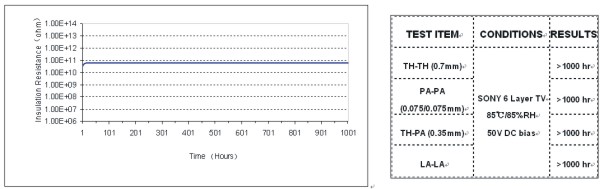

  · 优秀的耐CAF性能      Excellent Anti-CAF Performance
  · UV Blocking 和 AOI兼容   UV Blocking/AOI Compatible
  · 较低的吸水率        Lower Water Absorption
  · 优秀的尺寸安定性      Excellent Dimension Stability
  应用领域          APPLICATIONS
  · 消费电子类         Consumer Electronics
  · 电源、仪器仪表类      Power supplies, Instrumentations
  · 通讯设备类         Communications
  · 汽车电子类         Automotives, and etc.

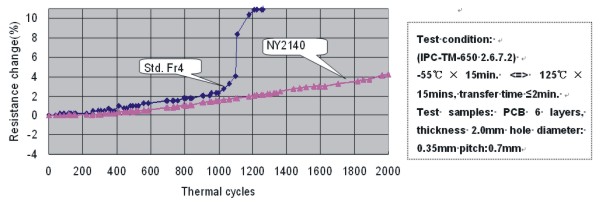

  · 优秀的耐热稳定性      Excellent Thermal Resistance

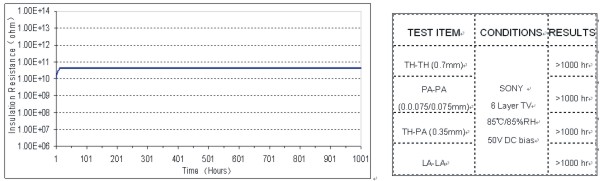

  · 优秀的耐CAF稳定性     Excellent Anti-CAF Performance

-----------------------------------------------------------------------------------------------------------------
6. 产品编号:【NY2150】
Middle Tg, PN Curing and Contains Fillers, Low Z-CTE, CAF Resistance
  特点             FEATURES
  · Tg ≥150℃无铅兼容FR-4板材 Tg ≥150℃ Lead-free compatible
  · 优秀的剥离强度       Excellent Peel Strength
  · 低Z-CTE值          Low Z-axis CTE

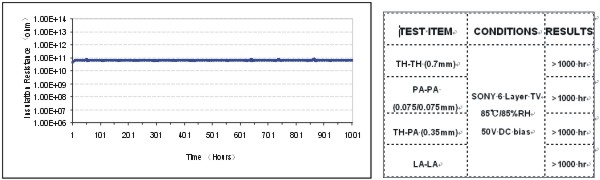

  · 优秀的耐CAF性能       Excellent Anti-CAF Performance
  · UV Blocking 和 AOI兼容   UV Blocking/AOI Compatible
  · 较低的吸水率        Lower Water Absorption
  · 优秀的尺寸安定性      Excellent Dimension Stability
  应用领域          APPLICATIONS
  · 消费电子类         Consumer Electronics
  · 电源、仪器仪表类      Power supplies, Instrumentations
  · 通讯设备类         Communications
  · 汽车电子类         Automotives, and etc.

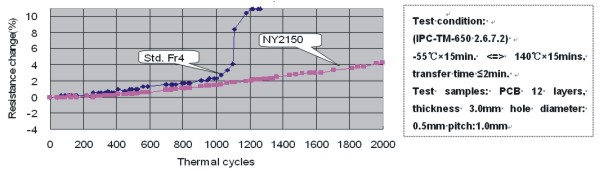

  · 优秀的耐热稳定性      Excellent Thermal Resistance

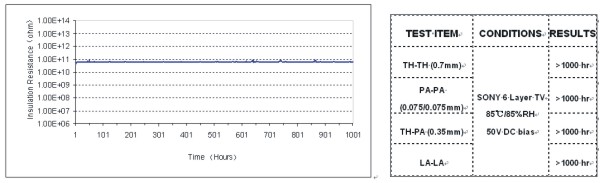

  · 优秀的耐CAF稳定性     Excellent Anti-CAF Performance

-----------------------------------------------------------------------------------------------------------------
7. 产品编号:【NY2170】
High Tg, PN Curing and Contains Fillers, Very Low Z-CTE, CAF Resistance
  特点            FEATURES
  · Tg≥170℃无铅兼容FR-4板材 Tg ≥170℃ Lead-free compatible
  · 优秀的剥离强度      Excellent Peel Strength
  · 非常低Z-CTE值       Very Low Z-axis CTE
  · 优秀的耐CAF性能      Excellent Anti-CAF Performance
  · 较低的吸水率       Lower Water Absorption
  · 优秀的尺寸安定性     Excellent Dimension Stability
  应用领域          APPLICATIONS
  · 消费电子类        Consumer Electronics
  · 电源、仪器仪表类     Power supplies, Instrumentations
  · 通讯设备类        Communications
  · 汽车电子类        Automotives
  · 军工产品类        Militaries, and etc.

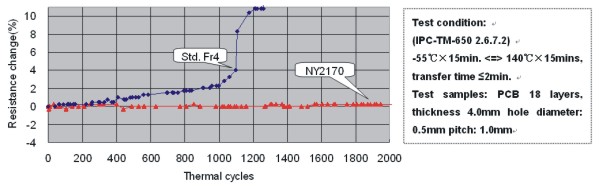

  · 优秀的耐热稳定性     Excellent Thermal Resistance

  · 优秀的耐CAF稳定性    Excellent Anti-CAF Performance

-----------------------------------------------------------------------------------------------------------------
8. 产品编号:【NY3140】
Normal Tg, Halogen-free, Contains Fillers, CAF Resistance, UL94 V-0
  特点            FEATURES
  · Tg ≥135℃无卤素无铅兼容FR-4板材 Tg ≥135℃ Halogen-free and Lead-free compatible
  · 优秀的剥离强度      Excellent Peel Strength
  · 优秀的PCB制程加工性    Excellent PCB Processibility
  · 优秀的耐CAF性能      Excellent Anti-CAF Performance
  · UV Blocking 和 AOI兼容  UV Blocking/AOI Compatible
  · 优秀的阻燃性符合UL94 V-0要求 Excellent Flammability Resistance
  · 优秀的尺寸安定性     Excellent Dimension Stability
  应用领域          APPLICATIONS
  · 消费电子类        Consumer Electronics
  · 电源、仪器仪表类     Power supplies, Instrumentations
  · 通讯设备类        Communications
  · 汽车电子类        Automotives, and etc.
  · 优秀的PCB制程加工性    Excellent PCB Processibility

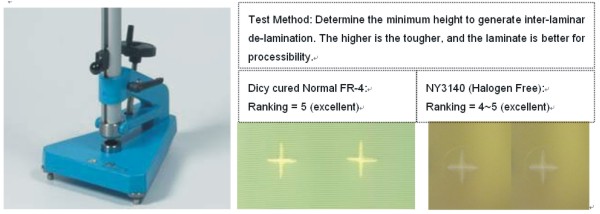

  · 检测韧性之落击试验    Toughness Impact tester

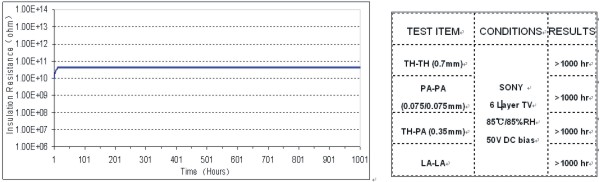

  · 优秀的耐CAF稳定性     Excellent Anti-CAF Performance

-----------------------------------------------------------------------------------------------------------------
9. 产品编号:【NY3150】
Middle Tg, Halogen-free, PN Curing and Contains Fillers, CAF Resistance, UL94 V-0
  特点            FEATURES
  · Tg ≥150℃无卤素无铅兼容FR-4板材 Tg ≥150℃ Halogen-free and Lead-free compatible
  · 优秀的剥离强度      Excellent Peel Strength
  · 低Z-CTE值         Low Z-axis CTE
  · 优秀的耐CAF性能      Excellent Anti-CAF Performance
  · UV Blocking 和 AOI兼容  UV Blocking/AOI Compatible
  · 优秀的阻燃性符合UL94 V-0要求 Excellent Flammability Resistance
  · 优秀的尺寸安定性     Excellent Dimension Stability
  · 优秀的耐漏电起痕性CTI≥250V (IEC60112方法)
                Excellent Tracking Resistance CTI≥250V (IEC60112Method)
  应用领域          APPLICATIONS
  · 消费电子类        Consumer Electronics
  · 电源、仪器仪表类     Power supplies, Instrumentations
  · 通讯设备类        Communications
  · 汽车电子类        Automotives, and etc.

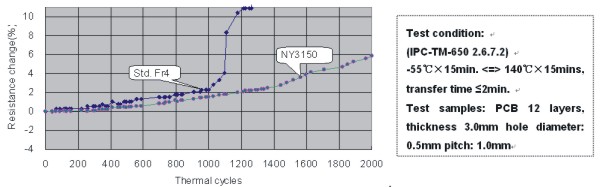

  · 优秀的耐热稳定性     Excellent Thermal Resistance

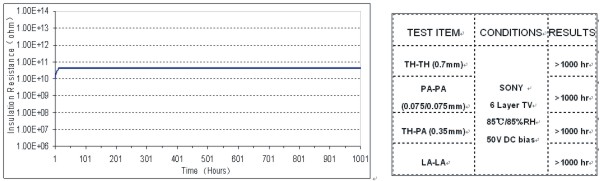

  · 优秀的耐CAF稳定性     Excellent Anti-CAF Performance

-----------------------------------------------------------------------------------------------------------------
10. 产品编号:【NY3170】
High Tg, Halogen-free, PN Curing and Contains Fillers, CAF Resistance, UL94 V-0
  特点            FEATURES
  · Tg ≥170℃无卤素无铅兼容FR-4板材 Tg ≥170℃ Halogen-free and Lead-free compatible
  · 优秀的剥离强度      Excellent Peel Strength
  · 低Z-CTE值         Low Z-axis CTE
  · 优秀的耐CAF性能      Excellent Anti-CAF Performance
  · UV Blocking 和 AOI兼容  UV Blocking/AOI Compatible
  · 优秀的阻燃性符合UL94 V-0要求 Excellent Flammability Resistance
  · 优秀的尺寸安定性     Excellent Dimension Stability
  应用领域          APPLICATIONS
  · 消费电子类        Consumer Electronics
  · 电源、仪器仪表类     Power supplies, Instrumentations
  · 通讯设备类        Communications
  · 汽车电子类        Automotives
  · 军工产品类        Militaries, and etc.

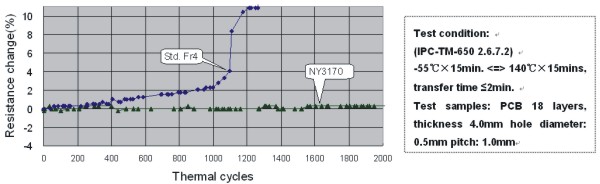

  · 优秀的耐热稳定性     Excellent Thermal Resistance

  · 优秀的耐CAF稳定性     Excellent Anti-CAF Performance

-----------------------------------------------------------------------------------------------------------------
11. 产品编号:【NY6150】
Middle Tg, Low Dk & Low Df , Low Z-CTE, CAF Resistance
  特点            FEATURES
  · 低介电常数(Dk=3.6, 1GHz)和介质损耗(Df=0.006, 1GHz)
                Low Dk (Dk=3.6, 1GHz) and Low loss (Df=0.006, 1GHz)
  · Tg ≥150℃无铅兼容板材  Tg ≥150℃ Lead-free compatible
  · 优秀的剥离强度      Excellent Peel Strength
  · 优秀的耐CAF性能      Excellent Anti-CAF Performance
  · UV Blocking 和 AOI兼容  UV Blocking/AOI Compatible
  · 优秀的尺寸安定性     Excellent Dimension Stability
  应用领域          APPLICATIONS
  · 高频、高速、低损耗通讯设备及4C电子产品类
                High Frequency, High Speed, Low Loss Communications or 4CElectronics, and etc.

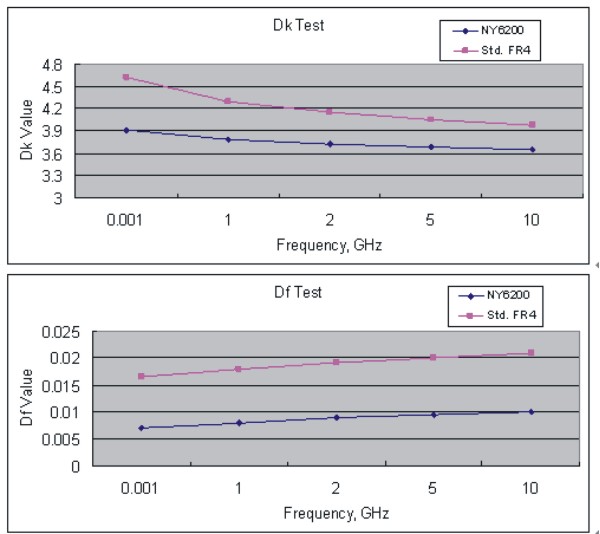

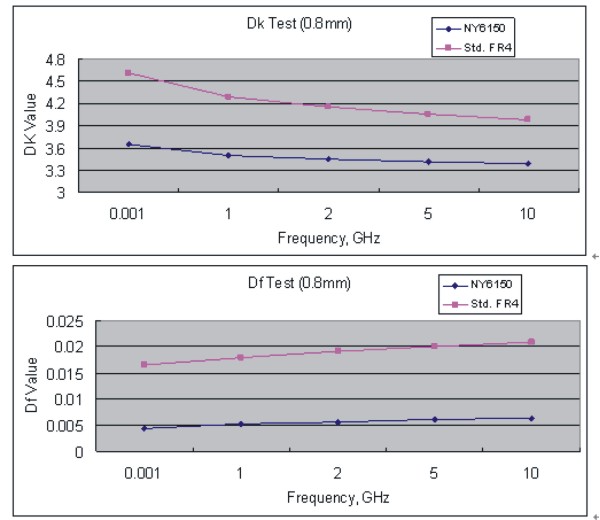

  · Dk & Df测试

12. 产品编号:【NY6200】
Very High Tg, Low Dk& Low Df, Low Z-CTE, CAF Resistance
  特点            FEATURES
  · 低介电常数(Dk≤3.8, 1GHz)和介质损耗(Df≤0.010, 1GHz)
                Low Dk (Dk≤3.8, 1GHz) and Low loss (Df≤0.010, 1GHz)
  · Tg ≥170℃无铅兼容板材  Tg ≥170℃ Lead-free compatible
  · 优秀的剥离强度      Excellent Peel Strength
  · 优秀的耐CAF性能      Excellent Anti-CAF Performance
  · UV Blocking 和 AOI兼容  UV Blocking/AOI Compatible
  · 优秀的尺寸安定性     Excellent Dimension Stability
  应用领域          APPLICATIONS
  · 高频、高速、低损耗通讯设备及4C电子产品类
                High Frequency, High Speed, Low Loss Communications or 4CElectronics, and etc.
  · Dk & Df测试





主办单位:中国电子材料行业协会覆铜板材料分会 联系电话:029-33335234 Email:ccla33335234@163.com
声明:任何网站如需转载本网站任何内容,请先与本网站联系,未经同意,不得转载
版权所有©中国覆铜板信息网
